SONDEX
Item No	Model	Type	Port Distance	Port OD（DN)
1	S17	Sonder Lock	800×150	65
2	S21	Sonder Lock	719×225	100
3	S22	Sonder Lock	719×225	100
4	S37	Sonder Lock	1070×238	80
5	S41	Sonder Lock	890×296	150
6	S42	Sonder Lock	890×296	150
7	S43	Sonder Lock	791×395	200
8	S47	Sonder Lock	1365×225	100
9	S62	Sonder Lock	1292×296	150
10	S65	Sonder Lock	1091×395	200
11	S81	Sonder Lock	1080×480	300
12	S86	Sonder Lock	1694×296	150
13	S100	Sonder Lock	1489×395	200
14	S113	Glue on	1527×448	250
15	S121	Sonder Lock	1490×480	300
16	S188	Sonder Lock	2120×480	300
17	S4A	Clip on	381×70	30
18	S7A	Clip on	394×126	50
19	S8A	Clip on	656×70	30
20	S9A	Clip on	380×192	65
21	S14A	Clip on	694×126	50
22	S19A	Clip on	700×192	65
23	S20A	Clip on	894×126	50
24	S21A	Clip on	719×225	100
25	S41A	Clip on	890×296	150
26	S43B	ClipGrip	791×395	200
27	S43AD	Clip on	791×395	200
28	S81A	Clip on	1080×480	300
29	S121A	Clip on	1490×480	300
30	SH101	Sonder Lock	609×236	100
31	SH102	Sonder Lock	609×236	100
32	SH154	Sonder Lock	1257×309	150
33	SH154L	Sonder Lock	1294×295	150
34	SH203	Sonder Lock	1489×395	200
35	SH204	Sonder Lock	1440×370	200
36	SH204L	Sonder Lock	1488×392	200
37	S110B	ClipGrip	2094×296	150
38	S130	Sonder Lock	1891×395	200
39	S62B	ClipGrip	1292×296	150
40	S201	Sonder Lock	1822×672	500
41	S31A	Clip on	1050×192	65
42	SF160	Sonder Lock	1916×556	300
43	S145	Glue on	1410×660	400
44	S210	Glue on	1901×660	400
45	S64	Sonder Lock	1771×225	100
46	S41-D	Clip on	890×296	150

APV
Item No	Model	Type	Port Distance	Port OD（DN)
1	Ti4	Sonder Lock
2	H17	Sonder Lock	800×150	65
3	N35	Sonder Lock	1069×239	80
4	N50	Glue on		80
5	A055	Sonder Lock		150
6	A085	Sonder Lock	1531×380	150
7	Q030	clip on	742×310	100
8	Q030D	clip on	742×310	100
9	Q055	clip on	1239×310	100
10	Q080	clip on	1756×311	100
11	Q080D	clip on	1757×310	100
12	J060	Sonder Lock	915×465	200
13	J092	Sonder Lock	1290×465	200
14	J107	Sonder Lock	1478×465	200
15	J185	Sonder Lock	2415×465	200
16	M92	Glue on	1290×465	200
17	M107	Glue on	1478×465	200
18	SR2	Sonder Lock	700×180	65
19	SR14	Sonder Lock	1522×486	300
20	SR14AD	Sonder Lock	2003×486	300
21	B063	Sonder Lock	1043×486	300
22	B110	Sonder Lock	1523×486	300
23	B134	Sonder Lock	1763×486	300
24	B205	Sonder Lock	2483×486	300
25	CZ450	clip on	1654×632	400
26	CS190	clip on	1885×668	500
27	HX24	Glue on	764×154	50
28	LR9	Sonder Lock	1034×410	200
31	J060	Sonder Lock
32	CZ450	Sonder Lock
33	J185	Sonder Lock
34	P190	Glue on	2138×570
35	TR9AL	Sonder Lock	2328×410	200
36	TR9	Sonder Lock	1468×410	200
37	QD050	clip on	1237×310	100
38	P105	Glue on
39	B158	Sonder Lock		300
40	S280	clip on	2530×668	500
41	K71	Sonder Lock		100
42	SR14GD	Sonder Lock	1043×486	300
43	M60
44	SR14AP	Sonder Lock	1523×486
45	S330	clip on	2876×668
46	J154	Sonder Lock		200
47	CS15P	clip on	1044×486	300
48	J107-JES	clip on	1478×465	200
49	QE055 first	clip on	1239×310	100
50	CZ450B	clip on	1960×632	400
51	O034	clip on		100
52	SR9	Sonder Lock		200
53	O050	clip on	1365×230	100
54	O050D	clip on	1365×230	100
55	QD055 first	clip on	1239×310	100

GEA
Item No	Model	Type	Port Distance	Port OD（DN)
1	VT04	Glue on	480×61	30
2	VT10	Glue on	691×118	50
3	VT20		868×212	80
4	VT20P		868×212	80
5	VT40		1227×257	125
6	VT40M		1227×257	125
7	VT80		1527×383	200
8	VT80M		1527×383	200
9	VT80P	Glue on	1527×383	200
10	NT50M	Sonder Lock	744×131	50
11	NT50X	Sonder Lock	1116×131	50
12	NT100T	Sonder Lock	707×262	100
13	NT100M	Sonder Lock	1113×262	100
14	NT100X	Sonder Lock	1519×262	100
15	NT150S	Sonder Lock	1091×314	150
16	NT150L	Sonder Lock	1571×314	150
17	NT250S	Sonder Lock	1406×420	250
18	NT250M	Sonder Lock	1703×420	250
19	NT250L	Sonder Lock	2000×420	250
20	NT350S	Sonder Lock	1692×559	350
21	NT350M	Sonder Lock	2029×559	350
22	NT500T	Sonder Lock	1893×662	500
23	VT405L	Glue on	1228×258	125
24	VT405M	Glue on	854×257	125
25	VT405S	Glue on	481×257	125
26	VT805	Glue on	966×382	200
27	AT805	Glue on	967×383	200
28	N40		1227×257	125
29	FA184-B	Glue on	1526×404	200
30	FA184-H	Glue on	1526×404	200
31	NH350M	Sonder Lock
32	VT180	Glue on	2155×540	400
33	NT80M	Sonder Lock		80
34	NT350M-2	Sonder Lock	2029×559	350

SWEP
Item No	Model	Type	Port Distance	Port OD（DN)
1	GX7	Glue on	640×60	30
2	GX12	Glue on	592×135	50
3	GL13	Glue on	592×135	50
4	GC16	Glue on	593×135	50
5	GX26	Glue on	779×226	100
6	GXP26	Glue on	779×226	100
7	GC26	Glue on	779×226	100
8	GX42	Glue on	1189×226	100
9	GX42-D	Clip on	1189×226	100
10	GX51	Glue on	1143×300	150
11	GXP51	Glue on	1143×300	150
12	GC51	Glue on	1143×300	150
13	GCP51	Clip on	1143×300	150
14	GC54	Glue on	1145×300	150
15	GX60	Glue on	910×420	200
16	GC60	Glue on	910×420	200
17	GX64	Glue on	1320×285	150
18	GX85	Glue on	1140×570	300
19	GXP85	Glue on	1140×570	300
20	GX91	Glue on	1800×285	150
21	GX100	Glue on	1490×420	200
22	GX118	Glue on	2280×285	150
23	GX145	Glue on	1720×570	300
24	GX205	Glue on	2300×570	300
27	GXP205	Glue on	2300×570	300
28	GC60	Glue on	910×420	200
29	GX85	Glue on
30	GX140	Glue on	2070×420	200
31	GXP42	Glue on	1189×226	100
32	GXD100-2	Glue on	1490×420	200
33	GL230	Glue on	2090×700	500
34	GL8	Glue on	640×60	30
35	GL13/GX13	Glue on	592×135	50

Thermowave
Item No	Model	Type	Port Distance	Port OD（DN)
1	TL90PP	Sonder Lock	565×125	50
2	TL150PP	Sonder Lock	825×125	50
3	TL200PP	Sonder Lock	619×212	80
4	TL250PP	Sonder Lock	774×256	100
5	TL500PP	Sonder Lock	1255×256	100
6	TL650PP	Sonder Lock	1153×305	200
7	TL850PP	Sonder Lock	1693×305	200
8	TL90SS	Sonder Lock	565×125	50
9	TL150SS	Sonder Lock	825×125	50
10	TL200SS	Sonder Lock	619×212	80
11	TL250SS	Sonder Lock	774×256	100
12	TL400SS	Sonder Lock	1207×212	80
13	TL500SS	Sonder Lock	1255×256	100
14	TL650SS	Sonder Lock	1153×305	200
15	TL850SS	Sonder Lock	1693×305	200
16	TL400-W	Sonder Lock	1207×212	80

Request information

Gaskets replacement for Brand GPHE

Plates replacement for Brand GPHE

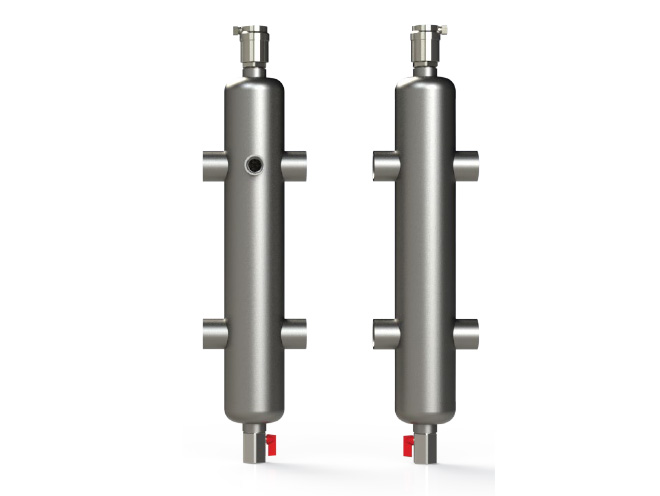

Hydro separator

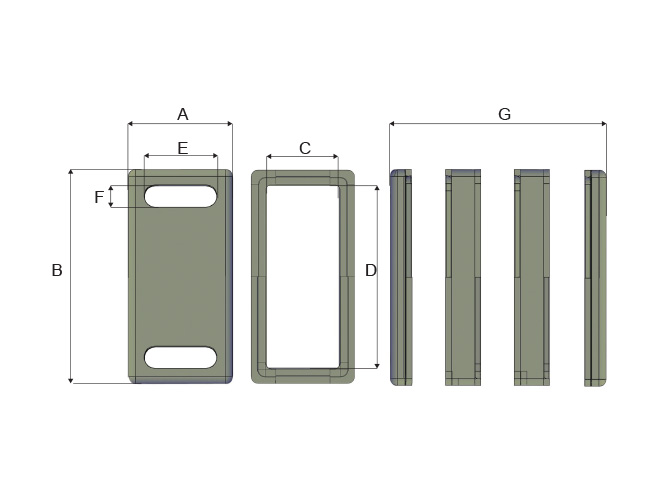

Heat Insulation

Schmidt
Item No	Model	Type	Port Distance	Port OD（DN)
1	M19	Sonder Lock	750×165	50
2	M25	ClipGrip	710×272	100
3	M26	ClipGrip	980×174	80
4	M27	Sonder Lock	980×174	80
5	M29	Sonder Lock	710×272	100
6	M35	ClipGrip	945×272	100
7	M37	Sonder Lock	1076×218	80
8	M55	ClipGrip	1335×272	100
9	M66	ClipGrip	1470×290	150
10	M96	ClipGrip	1798×325	200
11	M45	Glue on
12	M56	ClipGrip		200
13	M35X	ClipGrip	945×272	100
14	M49	Sonder Lock	945×272	100
15	M36	ClipGrip	1076×218	80
17	CLDS050	Glue on	860×178	40
18	M106
19	M114	Glue on
20	M136	ClipGrip	2082×425	250
22	G50282	Glue on	1055×230	65

FUNKE
Item No	Model	Type	Port Distance	Port OD（DN)
1	FP05	Clip on	380×70	30
2	FP10	Clip on	495×126	50
3	FP19	Sonder Lock	650×202	100
4	FS19	Glue on	650×202	100
5	FP31	Sonder Lock	894×225	100
6	FP40	Sonder Lock	1141×225	100
7	FS40	Glue on		100
8	FP41	Sonder Lock
9	FP50	Sonder Lock	1388×225	100
10	FP60	Sonder Lock
11	FP80	Sonder Lock
12	FP100	Sonder Lock		200
13	FS30	Glue on		100
14	FP16	Clip on	695×126	50

VICARB
Item No	Model	Type	Port Distance	Port OD（DN)
1	V4	Glue on	430×62
2	V8	Glue on	554×100
3	V13	Glue on	625×130	65
4	V20	Glue on	875×130	65
5	V28	Glue on	882×235	100
6	V45	Glue on	1302×235	100
7	V60	Glue on	1280×310	150
8	V85-D	Clip on
9	V100	Glue on	2000×310	150
10	V110	Glue on	1323×600	300

HISAKA
Item No	Model	Type	Port Distance	Port OD（DN)
2	LX-50A		1344×400	200
4	UX315	Glue on	1316×280	125
5	EX-15	Glue on	1000×250	100
8	RX-70	Glue on	1601×435	250
9	UX226	Glue on
10	LX595
11	LX30A
12	RX30A			150
13	UX80	Glue on
14	UX90	Glue on
15	LX30A

LHE
Item No	Model	Type	Port Distance	Port OD
1	HT122	Glue on	1237×310	115
2	DX-30L	Clip on	1628×540	300
3	HT151-L	ClipGrip	1534×380	150
4	HT151	ClipGrip	1060×380	150
5	SH232	ClipGrip	1416×465	200
6	HT232	ClipGrip	1290×465	200
7	H203	ClipGrip	1954×330	200
8	H201	ClipGrip	1006×330	200
9	HT202	ClipGrip	1480×330	200
10	HT351	ClipGrip	1340×570	350
11	DX-36D	ClipGrip	1960×570	350
12	DX-30D	Clip on	1628×540	300
13	LH303	Sonder Lock	1763×486	300
14	DX-40D	Sonder Lock	1638×670	440

Alfa Laval
Model	Angle	Channel depth (mm)	Port OD (mm)	Port Distance (mm)	Size (mm)	Single plate Area（㎡）	Note
M3	60°120°	2.5	φ29	357*60	429*125	0.03	Alfa Laval
T5M	52°	3.1	φ48	553*100	642*192	0.08	Alfa Laval
M6B	58°118°	2	φ59	640*140	747*248	0.15	Alfa Laval
M6M	60°126°	3.0	φ58	640*140	747*248	0.15	Alfa Laval
TS6M	67°120°	4	φ68	380*203	509*329	0.08	Alfa Laval
TL6B	68°125°	2.0	φ65	1036*140	1148*248	0.25	Alfa Laval
M10B	60°118°	3	φ97	719*223	871*371	0.25	Alfa Laval
M10M	57°121°	4.0	φ98	719*223	871*371	0.25	Alfa Laval
TL10B	87°130°	2	φ109.5	1338*218	1499*373	0.50	Alfa Laval
TL10P	125°65.5°	3.0	φ105	1338*218	1500*375	0.50	Alfa Laval
M15B	70°130°	3	φ140	1294*298	1498*496	0.65	Alfa Laval
M15M	61°123°	4.0	φ140	1294*298	1498*496	0.65	Alfa Laval
TS20M	57.5°122.5°	4	φ195	698.5*363	961*621	0.30	Alfa Laval
M20M	48.5°131.5°	4.0	φ205	1479*353	1745*620	0.85	Alfa Laval
T20M	48.5°131.5°	4	φ205	1479*353	1745*620	0.85	Alfa Laval
T20P	71°117°	3.0	φ210	1478*353	1749*621	0.90	Alfa Laval
T20B	70°127°	2	φ209	1478*353	1749*621	0.90	Alfa Laval
MX25M	56°121°	4.0	φ230	1939*439	2246*746	1.50	Alfa Laval
MX25B	55°127.5°	3	φ230	1939*439	2246*746	1.50	Alfa Laval
M30	67°127°	3.4	φ328	1842*596	2245*995	1.80	Alfa Laval
TL35B	124° 64°	3	φ350	2177*578	2598*998	2.20	Alfa Laval
TL15B	125° 68°	2.0	φ155	2035*288	498*2250	1.00	Alfa Laval
P16	60°120°	3	φ29	357*60	427*123	0.03	Alfa Laval
P26	46°120°	3.0	φ70	592*135	709*248	0.13	Alfa Laval
P36	90°	5	φ120	946*226	1124*400	0.32	Alfa Laval
A15B	72 120°	2.5	φ160	1315*350	1552*587	0.71	Alfa Laval
AK20	52°128°	4	φ210	931.5*365	1215*664	0.50	Alfa Laval
A35	72	4.9	φ350	1854*766	2290*1210	2.10	Alfa Laval
M6MW	55°130°	3	φ58	640*140	748*247	0.14	Semi-welded
M10BW	112°	2.6	φ100	719*223	874*374	0.22	Semi-welded
MK15BW	69° 128°	3	φ140	1044*298	1248*498	0.47	Semi-welded
M20MW	126° 49°	4.1	φ204	1478*353	1745*620	0.83	Semi-welded
MA30W	58°	4	φ330	1811*561	2244*995	1.55	Semi-welded
T20S	127	7.5	φ170	1478*353	1740*616	0.85	Wide gap Free flow
TL35S	127	8	φ348	2178*578	2591*991	2.20	Wide gap Free flow
Widegap200S	127	7.5	φ170	1478*353	1740*616	0.85	Wide gap Free flow
Widegap350S	127	8	φ348	2178*578	2591*991	2.20	Wide gap Free flow
T45M	118° 60°	4.0	φ450	2468*720	2996*1246	2.80	450/500
Others	T35P、TS35P、TL35S、AQUA、AQUA80、AQUA100、I60、I60M、I100B、 I100M、I150B、I150M、M15F、P22、EC350、EC500、AC400、AC600、T45M、T50M、 TS50M、Widegap200S、Widegap350S、AlfaVap350、AlfaVap500、AlfaCond400、 AlfaCond600

APV / SPX
Model	Angle	Channel depth (mm)	Port OD (mm)	Port Distance (mm)	Size (mm)	Single plate Area（㎡）	Note
H17	横竖^120°	3	φ74	800*150	920*271	0.17	APV
N35	横竖^120°	2.8	φ85	1069*238	1202*371	0.36	APV
SR2	46°90°	3	φ63.5	700*180	838*298	0.20	APV
J060	60°120°	3.0	φ229	915*465	1192*746	0.60	APV
J092	60°120°	3	φ229	1290*465	1567*746	0.92	APV
J107	60°120°	3.0	φ229	1477.5*465	1755*746	1.07	APV
J185	60°120°	3	φ229	2415*465	2692*746	1.85	APV
Q030E	60°120°	3.0	φ114	743*310	920*496	0.32	APV
Q030D	121° 61°	4	φ112	743*310	920*492	0.31	APV
Q055E	120°60°	3.0	φ114	1238*310	1415*496	0.55	APV
Q055D	121° 61°	4	φ112	1238*310	1415*492	0.57	APV
Q080D	121° 61°	4.2	φ112	1757*310	1934*492	0.80	APV
Q080E	120°	3	φ114	1757*310	1934*496	0.80	APV
A055	50°120°	3.2	φ150	1057*380	1271*595	0.55	APV
A085	50°120°	3	φ150	1531*380	1745*595	0.85	APV
M092	竖121°	2.8	φ229	1290*465	1565*747	0.92	APV
M060	竖121°	3	φ229	915*465	1190*747	0.60	APV
others	B063、B110、B134、B158、B205、C063、C110、C134、C158、C205、J060ES、 J092ES、J107ES、J185ES、O030、O050、L080 deep/ low,L080ES、L080DF

SONDEX /Danfoss
Model	Angle	Channel depth (mm)	Port OD (mm)	Port Distance (mm)	Size (mm)	Single plate Area（㎡）	Note
S4A	130°	2.35	φ28	381*70	449*140	0.04	Sondex
S8A	130°	2.35	φ28	656*70	724*140	0.08	Sondex
S7A	55°125°	2.60	φ60	394*126	498*230	0.07	Sondex
S14A	55°125°	2.60	φ60	694*126	798*230	0.14	Sondex
S20A	55°125°	2.60	φ60	894*126	998*230	0.20	Sondex
S9A	56°125°	2.30	φ66	381*192	496*306	0.09	Sondex
S19A	56°125°	2.30	φ66	701*192	816*306	0.19	Sondex
S31A	56°125°	2.30	φ66	1050*192	1166*306	0.31	Sondex
S37	60°134°	3.50	φ81	1071*238	1212*380	0.37	Sondex
S21	135°55°	2.60	φ100	719*225	871*380	0.21	Sondex
S21A	135°55°	2.60	φ100	719*225	871*380	0.21	Sondex
S22	140°55°	4.00	φ100	719*225	882*378	0.22	Sondex
S41A	135°55°	2.60	φ147	890*296	1100*500	0.41	Sondex
S41	135°55°	2.60	φ147	890*296	1100*497	0.41	Sondex
S62	55°135°	2.60	φ147	1292*296	1502*500	0.62	Sondex
S86	55°	2.60	φ147	1694*296	1904*500	0.86	Sondex
S110	55° 135°	2.60	φ147	2094*296	2304*500	1.10	Sondex
S42	135°55°	3.80	φ147	890*296	1100*497	0.42	Sondex
S63	131°55°	3.80	φ148	1292*296	1502*500	0.63	Sondex
S47	135°55°	2.60	φ100	1365*225	1518*380	0.47	Sondex
S64	135°55°	2.60	φ100	1771*225	1924*380	0.64	Sondex
S43	61°121°	2.60	φ202	791*395	1058*656	0.43	Sondex
S65	61°121°	2.60	φ202	1091*395	1358*656	0.65	Sondex
S100	61°121°	2.60	φ202	1489*395	1756*656	1.00	Sondex
S130	61°121°	2.60	φ202	1891*395	2153*657	1.30	Sondex
S113	62° 125°	2.80	φ250	1527*448	1846*758	1.13	Sondex
S113G	62° 125°	2.80	φ250	1527*448	1846*758	1.13	Sondex
S81	50°126°	3.50	φ303	1080*480	1464*868	0.81	Sondex
S121	50°126°	3.50	φ303	1490*480	1874*868	1.21	Sondex
S188	50°126°	3.50	φ303	2120*480	2504*868	1.88	Sondex
Others	SFD13、S145、S201、S210、S251、SF123、SF160

Tranter
Model	Angle	Channel depth (mm)	Port OD (mm)	Port Distance (mm)	Size (mm)	Single plate Area（㎡）	Note
GX7	51.2° 129°	2.20	φ30	640*60	715*125	0.08	Tranter
GX12	85°115°	3.00	φ67	592*135	714*250	0.13	Tranter
GL13	58°120°	3.00	φ67	592*135	714*248	0.13	Tranter
GC16	60°118°	1.90	φ55	592*135	700*250	0.16	Tranter
GX18	85°115°	3.00	φ67	822*135	941*248	0.18	Tranter
GC26	66°114°	4.00	φ105	779*226.5	941*384	0.26	Tranter
GX26	85°115°	3.30	φ105	779*226.5	941*384	0.26	Tranter
GX42	85°115°	3.30	φ105	1189*226	1352*385	0.42	Tranter
GX51	85°115°	3.25	φ145	1143*300	1354*507	0.51	Tranter
GC51	60°118°	4.00	φ145	1143*300	1352*505	0.51	Tranter
GC60	63°115°	4.40	φ216	910*420	1196*700	0.60	Tranter
GX60	85°115°	3.50	φ194	910*420	1196*704	0.60	Tranter
GX100	85°115°	3.50	φ194	1490*420	1776*704	1.00	Tranter
GX140	85°115°	3.50	φ194	2070*420	2356*704	1.40	Tranter
GX64	85°115°	3.00	φ152	1320*285	1552*506	0.64	Tranter
GX91	85°115°	3.00	φ152	1800*285	2032*506	0.91	Tranter
GX118	85°115°	2.90	φ152	2280*285	2512*506	1.18	Tranter
GX85	85°115°	3.30	φ315	1140*570	1528*942	0.85	Tranter
GX145	85°115°	3.30	φ315	1720*570	2108*942	1.45	Tranter
GL85	85°115°	3.30	φ315	1140*570	1528*942	0.85	Tranter
GL145	85°115°	3.30	φ315	1720*570	2108*942	1.45	Tranter
GX205	85°115°	3.30	φ315	2300*570	2688*942	2.05	Tranter
GX265	85°115°	3.30	φ315	2880*570	3268*942	2.65	Tranter
GL230	大、小、竖	4.50	φ458	2090*700	2650*1250	2.60	OD 450/500
others	GL8、GL230、GL240、GL330、GL430

GEA / Kelvion
Model	Angle	Channel depth (mm)	Port OD (mm)	Port Distance (mm)	Size (mm)	Single plate Area（㎡）	Note
NT50T	129°127°	2.80	φ58	371*130	492*246	0.07	GEA
NT50M	129° 127°	2.80	φ56	743*130	864*246	0.18	GEA
NT50X	129° 127°	2.80	φ56	1115*130	1236*246	0.26	GEA
NT100T	横竖128°	3.00	φ110	707*262	897*445	0.25	GEA
NT100M	横竖128°	3.00	φ110	1113*262	1303*445	0.44	GEA
NT100X	横竖128°	3.00	φ110	1519*262	1709*445	0.63	GEA
NT150L	横竖120°	3.20	φ155	1572*314	1804*541	0.85	GEA
NT150S	横竖120°	3.20	φ155	1092*314	1324*541	0.48	GEA
NT250S	横竖124°	3.10	φ250	1406*420	1736*745	0.88	GEA
NT250M	横竖124°	3.10	φ250	1703*420	2033*745	1.13	GEA
NT250L	横竖124°	3.10	φ250	2000*420	2330*745	1.38	GEA
N40	180°	5.00	φ120	1227*257	1406*432	0.45	Wide gap Free flow
VT04	128°	2.55	φ32	480*61	550*129	0.04	GEA
VT10	53°127°	3.00	φ50	691*118	780*212	0.10	GEA
VT20	横竖127°	3.90	φ79	868*212	999*337	0.26	GEA
VT40	横竖118°	3.90	φ115	1227*257	1400*425	0.46	GEA
VT80(M)	横竖117°	3.20	φ175	1526*382	1766*614	0.84	GEA

Theromwave
Model	Angle	Channel depth (mm)	Port OD (mm)	Port Distance (mm)	Size (mm)	Single plate Area (㎡）	Note
TL150S	54.7°	3.80	φ43	825*125	981*244	0.10	Theromwave
TL90S	54.7°	3.80	φ43	565*125	721*244	0.16	Theromwave
TL500S	127.5°60°	3.80	φ107	1256*256	1496*438	0.50	Theromwave
TL250S	127.5°60°	3.80	φ107	774*256	1014*438	0.28	Theromwave
TL650S	125.6°58.6°	4.00	φ206	1153*305	1495*586	0.57	Theromwave
TL850S	125.6°58.6°	4.00	φ206	1693*305	2035*586	0.91	Theromwave

MODEL	DIMENSION											WEIGHT		FLOW RATE
	FNPT Connect	A		B		D		E		I		WEIGHT		FLOW RATE
	in	in	mm	in	mm	in	mm	in	mm	in	mm	lbs	kg	GPM	m³/h
CB100	1	3.1	80	23	585	7.5	192	8.7	220	6.8	172	6.6	2.8	11	2.5
CB125	1 1/4	3.1	80	25	636	8.3	207	9.5	240	7.4	187	7.5	3.4	18	4
CB150	1 1/2	4.3	110	27	686	8.7	222	10.2	260	8	202	10.3	4.7	26	6
CB200	2	5	127	29	736	8.9	227	11.8	300	8.1	207	12.8	5.8	39	9

Technical data
Material	Expanded Polypropylene (EPP)
Fire protection class	DIN 4102
Density	45-60 KG/ m3
Heat conductivity	0.035 W/mk
Thickness	20MM
Max. Temperature	80°C

Size	A	B	C	D	E	F	G
B26	175	358	127	310	125	58	30+38 N
B50	168	576	168	528	166	56	30+38 N
B95	249	660	200	620	198	63	30+38 N
B120	295	577	247	529	245	63	30+38 N

Vicarb / Viex
Model	Angle	Channel depth (mm)	Port OD (mm)	Port Distance (mm)	Size (mm)	Single plate Area（㎡）	Note
V4	60°	3.00	φ30	430*62	500*125	0.04	Vicarb
V8	52°120°	3.00	φ49	554*100	640*188	0.08	Vicarb
V13	51°120°	3.50	φ70	625*130	739*241	0.13	Vicarb
V20	51°120°	3.50	φ70	875*130	989*241	0.20	Vicarb
V28	52°120°	4.00	φ100	882*234	1052*393	0.28	Vicarb
V45	52°120°	4.00	φ100	1302*234	1472*393	0.45	Vicarb
V60	52°120°	3.90	φ155	1280*310	1510*540	0.60	Vicarb
V100	52°120°	3.90	φ155	2000*310	2230*540	1.00	Vicarb
