Brazed plate heat exchanger
Gasket plate heat exchanger
Swimming pool heat exchange
Titanium water evaporator

Product Application

Panel inverters are used in a wide range of heat transfer applications, such as refrigeration, heating, industrial heating and cooling.

Plate heat exchanger structure

In the actual welding process, a welding point is formed at each contact point between the corrugated plates. The plate type frequency converter contains 2 independent flow channels. The heat exchange medium is introduced into the plate group through the holes formed by the four corners of the flow channel plate and is distributed to the flow channels formed between the corrugated flow channel plates for heat exchange.

Material

Plate material has 304 or 316L two options

Pressure

Copper BPHE Max Design Pressure: 30 bar / 45 bar
Nickle BPHE Max Design Pressure: 20 bar

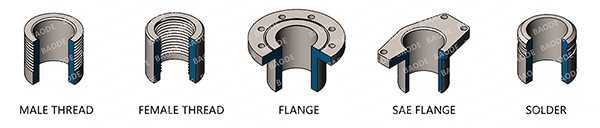

Connection Type

BAODE heat exchanger

Application

Plate heat exchangers are used in a wide range of heat transfer applications, such as refrigeration, heating, industrial heating and cooling.

Feature of gasket heat exchagner

The plate heat exchanger is a high-efficiency heat exchanger made by stacking multiple metal sheets with a certain corrugated shape. A thin rectangular channel is formed between various plates, and the plates are exchanged. Ideal equipment for liquid-liquid and liquid-vapor heat exchange. It has the characteristics of high heat exchange efficiency, low heat loss, compact and lightweight structure, small location, wide application, long replacement and so on. Under the same pressure loss, the heat transfer coefficient is 3-5 times higher than that of the tube heat exchanger, and the part is the distribution of the tube heat exchanger, and the heat recovery rate can be as high as 90% or more.

Plate heat exchanger structure

The disassembly of the plate heat exchanger is composed of many stamped corrugated thin plates at a certain interval, sealed with gaskets around them, and stacked and compressed with a frame and a compression screw. The four corner holes of the plates and gaskets form fluid distribution pipes and The collecting pipe, while reasonably separating the cold and hot fluids, is set to flow in a pair of flow channels for each plate, and heat exchange through the plates

Material

Plate Material： Stainless, Ti, SMO, Hastelloy
Gasket Material: NBR, EPDM, VITON

Pressure

Gasket Plate Heat Exchanger design pressure: 10 bar / 16 bar

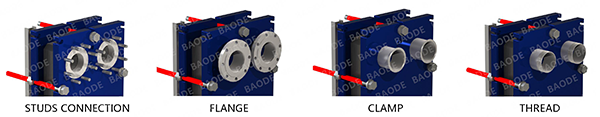

Connection Type

BAODE heat exchanger

Because of the added chlorine and bromine found in pools and spas and the flow requirements at the pool/hot tub side, flat plate solar heat exchangers are not suitable. A Special high flow pool heat exchanger should be used instead. These heat exchangers can handle the higher secondary side flow as well as the high levels of chlorine and also have better flow characteristics making them ideal for solar pool heating or solar hot tub heating. For applications that use salt water, we recommend the titanium version of the solar pool heat exchanger. This version is highly resistant to salt water and chlorine.

Pool Heat Exchangers

Our Solar Pool Exchanger Line of heat exchangers are designed to perform at high secondary side fluid velocities with low pressure drops.

Details Of Solar Pool Exchangers

The have a helical coiled tube design that makes it distinctive from other shell and tube heat exchangers on the market today. This unique design enables efficient heat transfer performance, and allows for diversity in its applications.
To maximize the performance of the Solar Pool exchanger, the product should be installed in a counter-current flow method, as shown below in Figure below. The hot, or heating, fluid flows through the tube or primary side. The cold, or heated, fluid flows through the shell or secondary side.

Example:

Example: for swimming pool applications, the pool water is to flow through the shell side, and the boiler water is to flow through the tube side.

Features:

With high heat transferring efficient heat exchanger tubes and smooth shell, it ensures high velocities inside of the unit making the heat exchanger a very reliable, efficient and cost effective way to transfer heat indirectly between any solar heating or boiler circuit and any pool or spa circuit, besides other applications.

Advantages:

High efficiency, coefficient up to 14000 w/m2 deg C, Heat exchanging capacity 3-7 times traditional equipment’s
Compact configuration, occupy small area, one tenth as the traditional equipment
Stainless steel and/or titanium, material, endure high temperature, pressure and corrosion
Helix screw thread elasticity heat exchange bundle, eliminate the stress
Design flux speed is 5.5m/s, less dirt
ASME standard VIII-1
Big flow volume
Compactable
Easy installation and durable

The Pool Exchanger design parameters are:

Shell Side Pressure: 60 PSI (4 bar)
Shell Side Temperature: 140 F (60 c)
Tube Side Pressure: 150 PSI (10 bar)
Tube Side Temperature: 250 F (120 c)

Please DO NOT exceed these design parameters. Failure to adhere to these parameters may result in equipment damage and/or personal injuries Pool Exchanger Design

Products Features:

1.100% pure titanium,strong anti-corrosive
2. Spiral twisted construction increases surface area
3. PVC shell is strong and highly durable ,and naturally resistant chlorine
4. One heat exchanger tube promised the risk of inner titanium tube's leaking
5. High efficiency,low cost,long lifetime
6. Can be used as condenser or evaporator upon request

Specification:

Shell Dimension: 110mm/160mm/200mm
Name: Titanium Water Evaporator
Usage: Cooling
Inner Tube Material: Pure Titanium twisted tube
Barrel Material: PVC (Polyvinyl Chlorine)
Refrigerant Side Pressure: 4.5 Mpa (700psi)
Water Side Pressure: 0.8Mpa (100psi)
Capacity: 2.5kw-60 kw or more

Applications:

Air source heat pump, Swimming pool heater, aquarium, aquaculture, maricultural, waste heat recovery, water source geothermal heat exchanger, and other non-potable water heating or heat transfer use with PVC compatible working fluids .Compatible with all CFC, HCFC and HFC refrigerants , safe with chlorine and salt water.

Baode Models

Specification Table

Brazed plate heat exchanger
Gasket plate heat exchanger
Swimming pool heat exchange
Titanium water evaporator

MODEL	BL12	BL14	BL14D	BL15	BL16	BL20	BL21	BL26	BL30	BL50
Width A (mm)	76	76	72	80	78	76	76	108	124	108
Height B (mm)	154	206	187	190	208	318	312	310	304	525
Thickness E (mm)	8+1.25N	9+2.3N	8+2.5N	9+2.3N	10+2.28N	9+2.2N	9+1.25N	10+2.3N	13+2.3N	10+2.35N
Horizontal Port Distance C (mm)	42	42	40	40	42	42	42	50	70	50
Vertical Port Distance D (mm)	120	172	154	154	172	282	278	250	250	466
Max Pressure [Mpa]	3/4.5	3/4.5	1	1	4.5	3/4.5	4.5	3/4.5	3/4.5	3/4.5
Max Flow Rate [M³/h]	3.6	3.6	3.6	3.6	3.6	3.6	8	8.1	12.7	12.7
Weight [kg]	0.3+0.03N	0.6+0.08N	0.4+0.05N	0.6+0.06N	0.65+0.047N	1+0.08N	0.66+0.07N	1.3+0.12N	2.2+0.16N	2.6+0.19N

MODEL	BL51	BL60	BL85	BL95	BL120	BL122	BL190	BL200	BL350	BL600
Width A (mm)	107	120	119	188	246	246	307	321	304	435
Height B (mm)	527	528	526	616	528	528	696	738	979	1410
Thickness E (mm)	10+2.35N	8+2.3N	11+1.95N	11+2.35N	13+2.36N	13+2.36N	13+2.75N	13+2.7N	9+2.28N	22+2.78N
Horizontal Port Distance C (mm)	50	63	63	92	174	174	179	188	179	220
Vertical Port Distance D (mm)	466	470	470	456	456	456	567	603	854	1190
Max Pressure [Mpa]	3/4.5	3/4.5	4.5	3/4.5	3	4.5	3	3/4.5	3	1.5
Max Flow Rate [M³/h]	12.7	12.7	22	39	42	42	100	100	100	300
Weight [kg]	2.6+0.19N	2.4+0.19N	3.1+0.19N	7.8+0.36N	7.2+0.52N	8.5+0.46N	12.5+0.72N	13+0.75N	35+0.99N	31.8+1.73N

MODEL	BL100	BL210
Width A (mm)	248	322
Height B (mm)	495	739
Thickness G (mm)	10+2.15N	13+2.55N
Up Horizontal Port Distance C (mm)	157	205.2
Low Horizontal Port Distance D (mm)	168	224
Gas side Vertical Port Distance E(mm)	405	631
Water side Vertical Port Distance F (mm)	405	568
Max Pressure [Mpa]	3/4.5	3/4.5

Model	B30	B60B	B60H	LB60B	LB100B	LB100P	SH60H	SH200H	B100B
Height, H [mm]	480	920	920	1264	1888	1888	704	1397	1045
Width, W [mm]	180	320	320	320	480	480	400	800	454
Max Length, L [mm]	620	1435	1445	1445	3242	3242	1430	3305	1795
Vertical Port Distance, VC [mm]	357	640	640	1436	1338	1338	380	698	719
Horizontal Port Distance, HC [mm]	60	140	140	140	225	225	203	363	225
Max Temperature [°C]	180	180	180	180	180	180	180	180	180
Max Pressure [barg]	10/16	10/16	10/16	10/16	10/16	10/16	10/16	10/16	10/16
Port Size	Pipe 1 1/4”	DN50/2”	DN50/2”	DN50/2”	DN100/4”	DN100/4”	DN65/2”	DN200/8”	DN100/4”
Channel depth [mm]	2.5	2	3	2	2	2.5	4	4	2.6
Max Water flow rate [kg/s]	4	16	16	16	50	50	20	190	50

Model	B100H	B150B	B150H	B200B	B200H	B250B	B250H	B300B	B450H
Height, H [mm]	1069	1815	1815	2260	2260	2595	2595	2900	3530
Width, W [mm]	470	610	610	780	780	920	920	1150	1430
Max Length, L [mm]	1810	3246	3260	3290	3305	3350	3350	3378	6204
Vertical Port Distance, VC [mm]	719	1294	1294	1478	1478	1939	1939	1842	2468
Horizontal Port Distance, HC [mm]	225	298	298	353	353	439	439	596	720
Max Temperature [°C]	180	180	180	180	180	180	180	180	180
Max Pressure [barg]	10/16	10/16	10/16	10/16	10/16	10/16	10/16	10/16	10/16
Port Size	DN100/4”	DN150/6”	DN150/6”	DN200/8”	DN200	DN200/DN250/ 8”/10”	DN200/DN250/ 8”/10”	DN300/DN350/ 12”/14”	DN450/18”
Channel depth [mm]	4	2.6	4	2.6	4	2.6	4	3.4	4
Max Water flow rate [kg/s]	50	80	80	225	225	250	250	497	1000

Model	ST16	ST25	ST45	ST60	ST88	ST105	ST175
USA Model	SP55	SP85	SP105	SP205	SP300	SP360	SP600
Length [mm]	339	494	404	511	701	890	862
Shell OD [mm]	63.5	63.5	80	80	80	80	110
Shell Ports Distance [mm]	193	348	234	341	521	710	644
E [mm]	30	30	38	38	45	45	53
Shell Port Size (Cold) [mm]	1''	1''	1.5''	1.5''	2''	2''	2.5''
Tube Port Size (Hot) [mm]	3/4''	3/4''	1''	1.5''	1.5''	1.5''	2''
POOL SIZE [m³]	15	25	45	65	90	110	180
Capacity [kw] or [kbtu/h]	16kw / 55kBtu/h	25kw / 85kBtu/h	45kw / 105kBtu/h	60kw / 205kBtu/h	88kw / 300kBtu/h	105kw / 360kBtu/h	175kw / 600kBtu/h

Model	ST352	ST700	ST880	ST1050	ST1350	ST1450	ST1750
USA Model	SP1200	SP2400	SP3000	SP3600	SP4500	SP5000	SP6000
Length [mm]	895	964	1130	1330	1030	1130	1330
Shell OD [mm]	127	168	168	168	219	219	219
Shell Ports Distance [mm]	659	662	828	1028	728	828	1028
E [mm]	53	86	86	86	86	86	86
Shell Port Size (Cold) [mm]	2.5''	4''	4''	4''	4''	4''	4''
Tube Port Size (Hot) [mm]	2''	2.5''	2.5''	2.5''	2.5''	2.5''	2.5''
POOL SIZE [m³]	360	800	1000	1200	1500	1660	1800
Capacity [kw] or [kbtu/h]	352kw / 1200kBtu/h	700kw / 2400kBtu/h	880kw / 3000kBtu/h	1050kw / 3600kBtu/h	1350kw / 4500kBtu/h	1450kw / 5000kBtu/h	1750kw / 6000kBtu/h

Model	Capcity	Water Flow Rate	H1	H2	Total Height	PVC Shell	Tube Size	Tube Length	Gas Connection	Water Connection
Model	(KW)	(m³/h)	(mm)	(mm)	(mm)	(mm)	(mm)	(m)	(mm)	(mm)
PVX-38	3.8	1.8	70	170	380	φ110*330	12.7	3	φ12.7/φ12.7	ϕ50 PVC thread
PVX-45	5	2	70	235	445	φ110*405	12.7	4.9	φ12.7/φ12.7
PVX-95	9.5	4.2	70	285	495	φ110*495	12.7	6.5	φ12.7/φ12.7
PVX-120	12	5.5	70	350	560	φ160*470	12.7	8.4	φ12.7/φ12.7
PVX-140	14	6.2	80	375	595	φ160*510	12.7	10.5	φ12.7/φ12.7
PVX-170	17	7.5	80	360	585	φ200*520	16	9.8	φ12.7/φ12.7
PVX-210	21	9.2	80	370	595	φ200*530	19	10	φ12.7/φ19
PVX-250	25	12	80	400	625	φ200*560	19	12.5	φ12.7/φ19
PVX-300	30	14	80	430	650	φ200*590	19	15	φ12.7/φ19
PVX-360	36	15	80	450	660	φ200*610	19	17	φ12.7/φ19
