Model Details		Model	BL20
Flow Pattern	parallel
Weight (kgs)	1.0+0.08N	Approval	UL, CE, BV, DNV, GL, ISO9001, ISO14001
Max Flow (m3/h)	3.6	Max Pressure (bar)	30 / 45
Plate Material	SS 304 / SS 316L	Max Temperature ℃	200
Conneciton Material	SS 304	Min Temperature ℃	-190
Brazing Material	Copper / Nickle	Packing	Individual box / Polywood box
Connection Type	Thread, Solder, Flange	Mount Bracket（Optional）	Studs, Brazcket, Feet
Max Connection Size	3/4‘’
Freon	R22, R401, R407, R515A


Model Details		Model	BL95
Flow Pattern	parallel
Weight (kgs)	7.8+0.36N	Approval	UL, CE, BV, DNV, GL, ISO9001, ISO14001
Max Flow (m3/h)	39	Max Pressure (bar)	30 / 45
Plate Material	SS 304 / SS 316L	Max Temperature ℃	200
Conneciton Material	SS 304	Min Temperature ℃	-190
Brazing Material	Copper / Nickle	Packing	Individual box / Polywood box
Connection Type	Thread, Solder, Flange	Mount Bracket（Optional）	Studs, Brazcket, Feet
Max Connection Size	2.5‘’
Freon	R22, R401, R407, R515A


Model Details		Model	BL26
Flow Pattern	parallel
Weight (kgs)	1.3+0.12N	Approval	UL, CE, BV, DNV, GL, ISO9001, ISO14001
Max Flow (m3/h)	8.1	Max Pressure (bar)	30 / 45
Plate Material	SS 304 / SS 316L	Max Temperature ℃	200
Conneciton Material	SS 304	Min Temperature ℃	-190
Brazing Material	Copper / Nickle	Packing	Individual box / Polywood box
Connection Type	Thread, Solder, Flange	Mount Bracket（Optional）	Studs, Brazcket, Feet
Max Connection Size	1‘’
Freon	R22, R401, R407, R515A


Model Details		Model	BL12
Flow Pattern	parallel
Weight (kgs)	0.3+0.08N	Approval	UL, CE, BV, DNV, GL, ISO9001, ISO14001
Max Flow (m3/h)	3.6	Max Pressure (bar)	30 / 45
Plate Material	SS 304 / SS 316L	Max Temperature ℃	200
Conneciton Material	SS 304	Min Temperature ℃	-190
Brazing Material	Copper / Nickle	Packing	Individual box / Polywood box
Connection Type	Thread, Solder, Flange	Mount Bracket（Optional）	Studs, Brazcket, Feet
Max Connection Size	3/4‘’
Freon	R22, R401, R407, R515A


Model Details		Model	BL50
Flow Pattern	parallel
Weight (kgs)	2.6+0.19N	Approval	UL, CE, BV, DNV, GL, ISO9001, ISO14001
Max Flow (m3/h)	12.7	Max Pressure (bar)	30 / 45
Plate Material	SS 304 / SS 316L	Max Temperature ℃	200
Conneciton Material	SS 304	Min Temperature ℃	-190
Brazing Material	Copper / Nickle	Packing	Individual box / Polywood box
Connection Type	Thread, Solder, Flange	Mount Bracket（Optional）	Studs, Brazcket, Feet
Max Connection Size	1‘’
Freon	R22, R401, R407, R515A

Request information

BL20

BL95

BL26

BL12

BL50

BL60

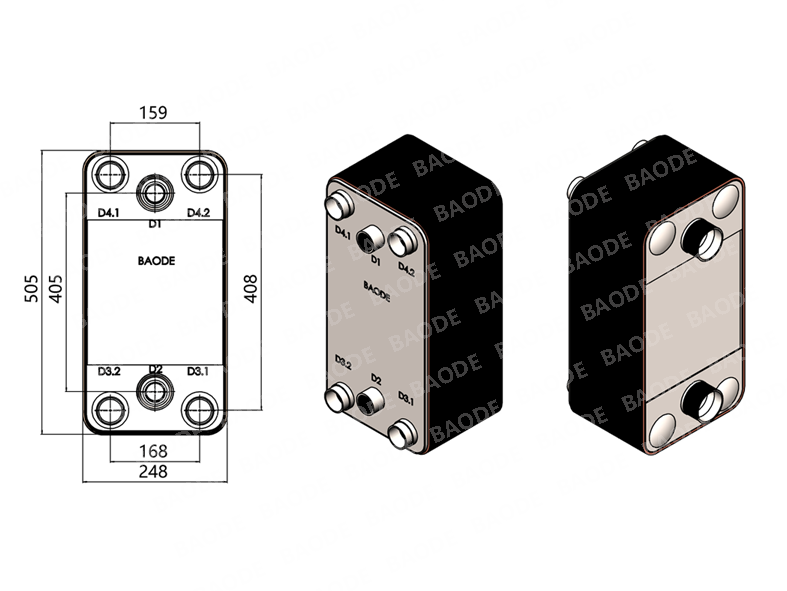

BL100

BL190

BL120

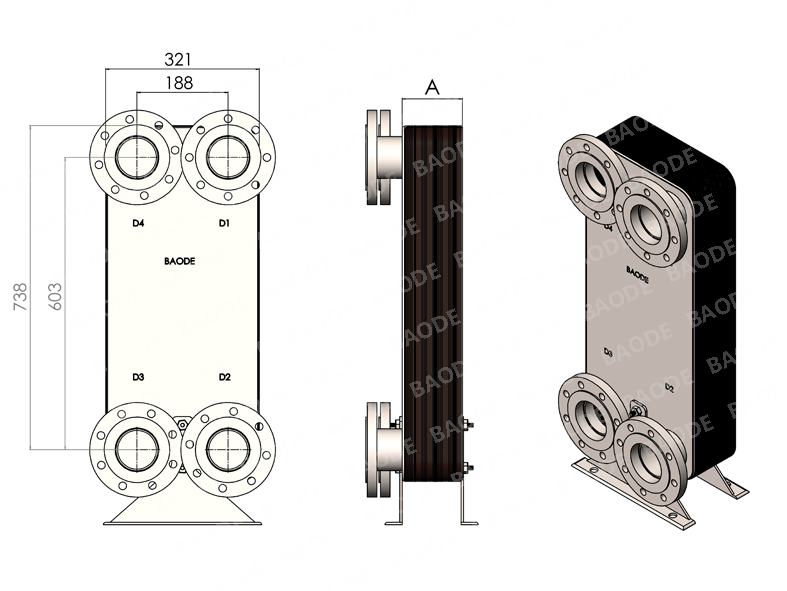

BL200

Gaskets replacement for Brand GPHE

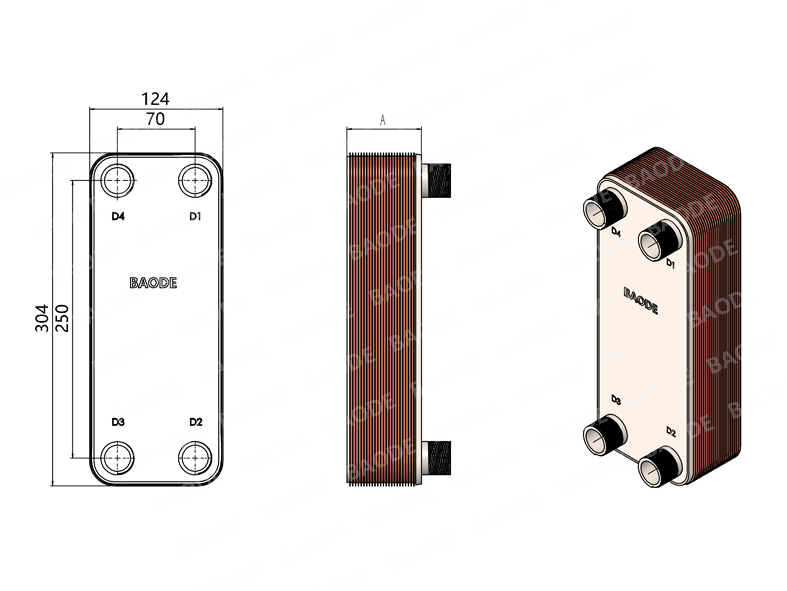

BL30

BL600

BL210

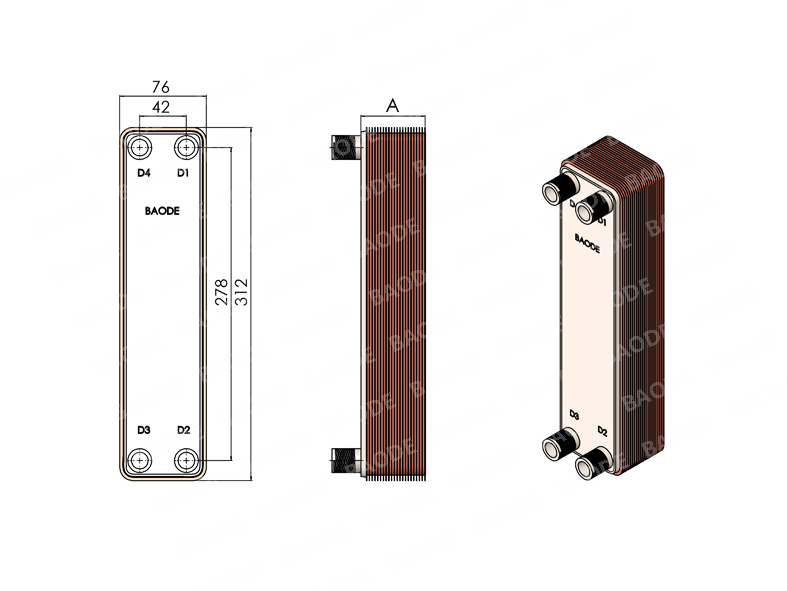

BL21

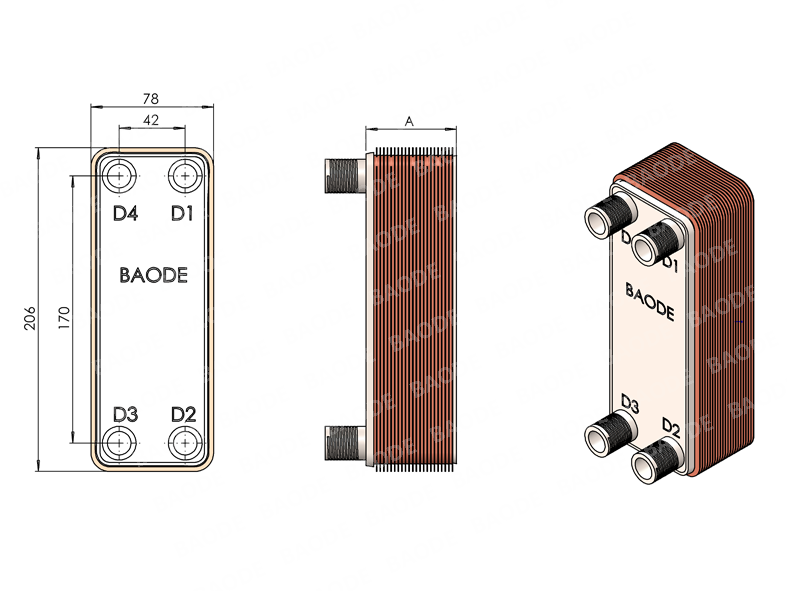

BL14

Plates replacement for Brand GPHE

SONDEX
Item No	Model	Type	Port Distance	Port OD（DN)
1	S17	Sonder Lock	800×150	65
2	S21	Sonder Lock	719×225	100
3	S22	Sonder Lock	719×225	100
4	S37	Sonder Lock	1070×238	80
5	S41	Sonder Lock	890×296	150
6	S42	Sonder Lock	890×296	150
7	S43	Sonder Lock	791×395	200
8	S47	Sonder Lock	1365×225	100
9	S62	Sonder Lock	1292×296	150
10	S65	Sonder Lock	1091×395	200
11	S81	Sonder Lock	1080×480	300
12	S86	Sonder Lock	1694×296	150
13	S100	Sonder Lock	1489×395	200
14	S113	Glue on	1527×448	250
15	S121	Sonder Lock	1490×480	300
16	S188	Sonder Lock	2120×480	300
17	S4A	Clip on	381×70	30
18	S7A	Clip on	394×126	50
19	S8A	Clip on	656×70	30
20	S9A	Clip on	380×192	65
21	S14A	Clip on	694×126	50
22	S19A	Clip on	700×192	65
23	S20A	Clip on	894×126	50
24	S21A	Clip on	719×225	100
25	S41A	Clip on	890×296	150
26	S43B	ClipGrip	791×395	200
27	S43AD	Clip on	791×395	200
28	S81A	Clip on	1080×480	300
29	S121A	Clip on	1490×480	300
30	SH101	Sonder Lock	609×236	100
31	SH102	Sonder Lock	609×236	100
32	SH154	Sonder Lock	1257×309	150
33	SH154L	Sonder Lock	1294×295	150
34	SH203	Sonder Lock	1489×395	200
35	SH204	Sonder Lock	1440×370	200
36	SH204L	Sonder Lock	1488×392	200
37	S110B	ClipGrip	2094×296	150
38	S130	Sonder Lock	1891×395	200
39	S62B	ClipGrip	1292×296	150
40	S201	Sonder Lock	1822×672	500
41	S31A	Clip on	1050×192	65
42	SF160	Sonder Lock	1916×556	300
43	S145	Glue on	1410×660	400
44	S210	Glue on	1901×660	400
45	S64	Sonder Lock	1771×225	100
46	S41-D	Clip on	890×296	150

APV
Item No	Model	Type	Port Distance	Port OD（DN)
1	Ti4	Sonder Lock
2	H17	Sonder Lock	800×150	65
3	N35	Sonder Lock	1069×239	80
4	N50	Glue on		80
5	A055	Sonder Lock		150
6	A085	Sonder Lock	1531×380	150
7	Q030	clip on	742×310	100
8	Q030D	clip on	742×310	100
9	Q055	clip on	1239×310	100
10	Q080	clip on	1756×311	100
11	Q080D	clip on	1757×310	100
12	J060	Sonder Lock	915×465	200
13	J092	Sonder Lock	1290×465	200
14	J107	Sonder Lock	1478×465	200
15	J185	Sonder Lock	2415×465	200
16	M92	Glue on	1290×465	200
17	M107	Glue on	1478×465	200
18	SR2	Sonder Lock	700×180	65
19	SR14	Sonder Lock	1522×486	300
20	SR14AD	Sonder Lock	2003×486	300
21	B063	Sonder Lock	1043×486	300
22	B110	Sonder Lock	1523×486	300
23	B134	Sonder Lock	1763×486	300
24	B205	Sonder Lock	2483×486	300
25	CZ450	clip on	1654×632	400
26	CS190	clip on	1885×668	500
27	HX24	Glue on	764×154	50
28	LR9	Sonder Lock	1034×410	200
31	J060	Sonder Lock
32	CZ450	Sonder Lock
33	J185	Sonder Lock
34	P190	Glue on	2138×570
35	TR9AL	Sonder Lock	2328×410	200
36	TR9	Sonder Lock	1468×410	200
37	QD050	clip on	1237×310	100
38	P105	Glue on
39	B158	Sonder Lock		300
40	S280	clip on	2530×668	500
41	K71	Sonder Lock		100
42	SR14GD	Sonder Lock	1043×486	300
43	M60
44	SR14AP	Sonder Lock	1523×486
45	S330	clip on	2876×668
46	J154	Sonder Lock		200
47	CS15P	clip on	1044×486	300
48	J107-JES	clip on	1478×465	200
49	QE055 first	clip on	1239×310	100
50	CZ450B	clip on	1960×632	400
51	O034	clip on		100
52	SR9	Sonder Lock		200
53	O050	clip on	1365×230	100
54	O050D	clip on	1365×230	100
55	QD055 first	clip on	1239×310	100

GEA
Item No	Model	Type	Port Distance	Port OD（DN)
1	VT04	Glue on	480×61	30
2	VT10	Glue on	691×118	50
3	VT20		868×212	80
4	VT20P		868×212	80
5	VT40		1227×257	125
6	VT40M		1227×257	125
7	VT80		1527×383	200
8	VT80M		1527×383	200
9	VT80P	Glue on	1527×383	200
10	NT50M	Sonder Lock	744×131	50
11	NT50X	Sonder Lock	1116×131	50
12	NT100T	Sonder Lock	707×262	100
13	NT100M	Sonder Lock	1113×262	100
14	NT100X	Sonder Lock	1519×262	100
15	NT150S	Sonder Lock	1091×314	150
16	NT150L	Sonder Lock	1571×314	150
17	NT250S	Sonder Lock	1406×420	250
18	NT250M	Sonder Lock	1703×420	250
19	NT250L	Sonder Lock	2000×420	250
20	NT350S	Sonder Lock	1692×559	350
21	NT350M	Sonder Lock	2029×559	350
22	NT500T	Sonder Lock	1893×662	500
23	VT405L	Glue on	1228×258	125
24	VT405M	Glue on	854×257	125
25	VT405S	Glue on	481×257	125
26	VT805	Glue on	966×382	200
27	AT805	Glue on	967×383	200
28	N40		1227×257	125
29	FA184-B	Glue on	1526×404	200
30	FA184-H	Glue on	1526×404	200
31	NH350M	Sonder Lock
32	VT180	Glue on	2155×540	400
33	NT80M	Sonder Lock		80
34	NT350M-2	Sonder Lock	2029×559	350

SWEP
Item No	Model	Type	Port Distance	Port OD（DN)
1	GX7	Glue on	640×60	30
2	GX12	Glue on	592×135	50
3	GL13	Glue on	592×135	50
4	GC16	Glue on	593×135	50
5	GX26	Glue on	779×226	100
6	GXP26	Glue on	779×226	100
7	GC26	Glue on	779×226	100
8	GX42	Glue on	1189×226	100
9	GX42-D	Clip on	1189×226	100
10	GX51	Glue on	1143×300	150
11	GXP51	Glue on	1143×300	150
12	GC51	Glue on	1143×300	150
13	GCP51	Clip on	1143×300	150
14	GC54	Glue on	1145×300	150
15	GX60	Glue on	910×420	200
16	GC60	Glue on	910×420	200
17	GX64	Glue on	1320×285	150
18	GX85	Glue on	1140×570	300
19	GXP85	Glue on	1140×570	300
20	GX91	Glue on	1800×285	150
21	GX100	Glue on	1490×420	200
22	GX118	Glue on	2280×285	150
23	GX145	Glue on	1720×570	300
24	GX205	Glue on	2300×570	300
27	GXP205	Glue on	2300×570	300
28	GC60	Glue on	910×420	200
29	GX85	Glue on
30	GX140	Glue on	2070×420	200
31	GXP42	Glue on	1189×226	100
32	GXD100-2	Glue on	1490×420	200
33	GL230	Glue on	2090×700	500
34	GL8	Glue on	640×60	30
35	GL13/GX13	Glue on	592×135	50

Thermowave
Item No	Model	Type	Port Distance	Port OD（DN)
1	TL90PP	Sonder Lock	565×125	50
2	TL150PP	Sonder Lock	825×125	50
3	TL200PP	Sonder Lock	619×212	80
4	TL250PP	Sonder Lock	774×256	100
5	TL500PP	Sonder Lock	1255×256	100
6	TL650PP	Sonder Lock	1153×305	200
7	TL850PP	Sonder Lock	1693×305	200
8	TL90SS	Sonder Lock	565×125	50
9	TL150SS	Sonder Lock	825×125	50
10	TL200SS	Sonder Lock	619×212	80
11	TL250SS	Sonder Lock	774×256	100
12	TL400SS	Sonder Lock	1207×212	80
13	TL500SS	Sonder Lock	1255×256	100
14	TL650SS	Sonder Lock	1153×305	200
15	TL850SS	Sonder Lock	1693×305	200
16	TL400-W	Sonder Lock	1207×212	80

Schmidt
Item No	Model	Type	Port Distance	Port OD（DN)
1	M19	Sonder Lock	750×165	50
2	M25	ClipGrip	710×272	100
3	M26	ClipGrip	980×174	80
4	M27	Sonder Lock	980×174	80
5	M29	Sonder Lock	710×272	100
6	M35	ClipGrip	945×272	100
7	M37	Sonder Lock	1076×218	80
8	M55	ClipGrip	1335×272	100
9	M66	ClipGrip	1470×290	150
10	M96	ClipGrip	1798×325	200
11	M45	Glue on
12	M56	ClipGrip		200
13	M35X	ClipGrip	945×272	100
14	M49	Sonder Lock	945×272	100
15	M36	ClipGrip	1076×218	80
17	CLDS050	Glue on	860×178	40
18	M106
19	M114	Glue on
20	M136	ClipGrip	2082×425	250
22	G50282	Glue on	1055×230	65

FUNKE
Item No	Model	Type	Port Distance	Port OD（DN)
1	FP05	Clip on	380×70	30
2	FP10	Clip on	495×126	50
3	FP19	Sonder Lock	650×202	100
4	FS19	Glue on	650×202	100
5	FP31	Sonder Lock	894×225	100
6	FP40	Sonder Lock	1141×225	100
7	FS40	Glue on		100
8	FP41	Sonder Lock
9	FP50	Sonder Lock	1388×225	100
10	FP60	Sonder Lock
11	FP80	Sonder Lock
12	FP100	Sonder Lock		200
13	FS30	Glue on		100
14	FP16	Clip on	695×126	50

VICARB
Item No	Model	Type	Port Distance	Port OD（DN)
1	V4	Glue on	430×62
2	V8	Glue on	554×100
3	V13	Glue on	625×130	65
4	V20	Glue on	875×130	65
5	V28	Glue on	882×235	100
6	V45	Glue on	1302×235	100
7	V60	Glue on	1280×310	150
8	V85-D	Clip on
9	V100	Glue on	2000×310	150
10	V110	Glue on	1323×600	300

HISAKA
Item No	Model	Type	Port Distance	Port OD（DN)
2	LX-50A		1344×400	200
4	UX315	Glue on	1316×280	125
5	EX-15	Glue on	1000×250	100
8	RX-70	Glue on	1601×435	250
9	UX226	Glue on
10	LX595
11	LX30A
12	RX30A			150
13	UX80	Glue on
14	UX90	Glue on
15	LX30A

LHE
Item No	Model	Type	Port Distance	Port OD
1	HT122	Glue on	1237×310	115
2	DX-30L	Clip on	1628×540	300
3	HT151-L	ClipGrip	1534×380	150
4	HT151	ClipGrip	1060×380	150
5	SH232	ClipGrip	1416×465	200
6	HT232	ClipGrip	1290×465	200
7	H203	ClipGrip	1954×330	200
8	H201	ClipGrip	1006×330	200
9	HT202	ClipGrip	1480×330	200
10	HT351	ClipGrip	1340×570	350
11	DX-36D	ClipGrip	1960×570	350
12	DX-30D	Clip on	1628×540	300
13	LH303	Sonder Lock	1763×486	300
14	DX-40D	Sonder Lock	1638×670	440

Alfa Laval
Model	Angle	Channel depth (mm)	Port OD (mm)	Port Distance (mm)	Size (mm)	Single plate Area（㎡）	Note
M3	60°120°	2.5	φ29	357*60	429*125	0.03	Alfa Laval
T5M	52°	3.1	φ48	553*100	642*192	0.08	Alfa Laval
M6B	58°118°	2	φ59	640*140	747*248	0.15	Alfa Laval
M6M	60°126°	3.0	φ58	640*140	747*248	0.15	Alfa Laval
TS6M	67°120°	4	φ68	380*203	509*329	0.08	Alfa Laval
TL6B	68°125°	2.0	φ65	1036*140	1148*248	0.25	Alfa Laval
M10B	60°118°	3	φ97	719*223	871*371	0.25	Alfa Laval
M10M	57°121°	4.0	φ98	719*223	871*371	0.25	Alfa Laval
TL10B	87°130°	2	φ109.5	1338*218	1499*373	0.50	Alfa Laval
TL10P	125°65.5°	3.0	φ105	1338*218	1500*375	0.50	Alfa Laval
M15B	70°130°	3	φ140	1294*298	1498*496	0.65	Alfa Laval
M15M	61°123°	4.0	φ140	1294*298	1498*496	0.65	Alfa Laval
TS20M	57.5°122.5°	4	φ195	698.5*363	961*621	0.30	Alfa Laval
M20M	48.5°131.5°	4.0	φ205	1479*353	1745*620	0.85	Alfa Laval
T20M	48.5°131.5°	4	φ205	1479*353	1745*620	0.85	Alfa Laval
T20P	71°117°	3.0	φ210	1478*353	1749*621	0.90	Alfa Laval
T20B	70°127°	2	φ209	1478*353	1749*621	0.90	Alfa Laval
MX25M	56°121°	4.0	φ230	1939*439	2246*746	1.50	Alfa Laval
MX25B	55°127.5°	3	φ230	1939*439	2246*746	1.50	Alfa Laval
M30	67°127°	3.4	φ328	1842*596	2245*995	1.80	Alfa Laval
TL35B	124° 64°	3	φ350	2177*578	2598*998	2.20	Alfa Laval
TL15B	125° 68°	2.0	φ155	2035*288	498*2250	1.00	Alfa Laval
P16	60°120°	3	φ29	357*60	427*123	0.03	Alfa Laval
P26	46°120°	3.0	φ70	592*135	709*248	0.13	Alfa Laval
P36	90°	5	φ120	946*226	1124*400	0.32	Alfa Laval
A15B	72 120°	2.5	φ160	1315*350	1552*587	0.71	Alfa Laval
AK20	52°128°	4	φ210	931.5*365	1215*664	0.50	Alfa Laval
A35	72	4.9	φ350	1854*766	2290*1210	2.10	Alfa Laval
M6MW	55°130°	3	φ58	640*140	748*247	0.14	Semi-welded
M10BW	112°	2.6	φ100	719*223	874*374	0.22	Semi-welded
MK15BW	69° 128°	3	φ140	1044*298	1248*498	0.47	Semi-welded
M20MW	126° 49°	4.1	φ204	1478*353	1745*620	0.83	Semi-welded
MA30W	58°	4	φ330	1811*561	2244*995	1.55	Semi-welded
T20S	127	7.5	φ170	1478*353	1740*616	0.85	Wide gap Free flow
TL35S	127	8	φ348	2178*578	2591*991	2.20	Wide gap Free flow
Widegap200S	127	7.5	φ170	1478*353	1740*616	0.85	Wide gap Free flow
Widegap350S	127	8	φ348	2178*578	2591*991	2.20	Wide gap Free flow
T45M	118° 60°	4.0	φ450	2468*720	2996*1246	2.80	450/500

APV / SPX
Model	Angle	Channel depth (mm)	Port OD (mm)	Port Distance (mm)	Size (mm)	Single plate Area（㎡）	Note
H17	横竖^120°	3	φ74	800*150	920*271	0.17	APV
N35	横竖^120°	2.8	φ85	1069*238	1202*371	0.36	APV
SR2	46°90°	3	φ63.5	700*180	838*298	0.20	APV
J060	60°120°	3.0	φ229	915*465	1192*746	0.60	APV
J092	60°120°	3	φ229	1290*465	1567*746	0.92	APV
J107	60°120°	3.0	φ229	1477.5*465	1755*746	1.07	APV
J185	60°120°	3	φ229	2415*465	2692*746	1.85	APV
Q030E	60°120°	3.0	φ114	743*310	920*496	0.32	APV
Q030D	121° 61°	4	φ112	743*310	920*492	0.31	APV
Q055E	120°60°	3.0	φ114	1238*310	1415*496	0.55	APV
Q055D	121° 61°	4	φ112	1238*310	1415*492	0.57	APV
Q080D	121° 61°	4.2	φ112	1757*310	1934*492	0.80	APV
Q080E	120°	3	φ114	1757*310	1934*496	0.80	APV
A055	50°120°	3.2	φ150	1057*380	1271*595	0.55	APV
A085	50°120°	3	φ150	1531*380	1745*595	0.85	APV
M092	竖121°	2.8	φ229	1290*465	1565*747	0.92	APV
M060	竖121°	3	φ229	915*465	1190*747	0.60	APV
others	B063、B110、B134、B158、B205、C063、C110、C134、C158、C205、J060ES、 J092ES、J107ES、J185ES、O030、O050、L080 deep/ low,L080ES、L080DF

SONDEX /Danfoss
Model	Angle	Channel depth (mm)	Port OD (mm)	Port Distance (mm)	Size (mm)	Single plate Area（㎡）	Note
S4A	130°	2.35	φ28	381*70	449*140	0.04	Sondex
S8A	130°	2.35	φ28	656*70	724*140	0.08	Sondex
S7A	55°125°	2.60	φ60	394*126	498*230	0.07	Sondex
S14A	55°125°	2.60	φ60	694*126	798*230	0.14	Sondex
S20A	55°125°	2.60	φ60	894*126	998*230	0.20	Sondex
S9A	56°125°	2.30	φ66	381*192	496*306	0.09	Sondex
S19A	56°125°	2.30	φ66	701*192	816*306	0.19	Sondex
S31A	56°125°	2.30	φ66	1050*192	1166*306	0.31	Sondex
S37	60°134°	3.50	φ81	1071*238	1212*380	0.37	Sondex
S21	135°55°	2.60	φ100	719*225	871*380	0.21	Sondex
S21A	135°55°	2.60	φ100	719*225	871*380	0.21	Sondex
S22	140°55°	4.00	φ100	719*225	882*378	0.22	Sondex
S41A	135°55°	2.60	φ147	890*296	1100*500	0.41	Sondex
S41	135°55°	2.60	φ147	890*296	1100*497	0.41	Sondex
S62	55°135°	2.60	φ147	1292*296	1502*500	0.62	Sondex
S86	55°	2.60	φ147	1694*296	1904*500	0.86	Sondex
S110	55° 135°	2.60	φ147	2094*296	2304*500	1.10	Sondex
S42	135°55°	3.80	φ147	890*296	1100*497	0.42	Sondex
S63	131°55°	3.80	φ148	1292*296	1502*500	0.63	Sondex
S47	135°55°	2.60	φ100	1365*225	1518*380	0.47	Sondex
S64	135°55°	2.60	φ100	1771*225	1924*380	0.64	Sondex
S43	61°121°	2.60	φ202	791*395	1058*656	0.43	Sondex
S65	61°121°	2.60	φ202	1091*395	1358*656	0.65	Sondex
S100	61°121°	2.60	φ202	1489*395	1756*656	1.00	Sondex
S130	61°121°	2.60	φ202	1891*395	2153*657	1.30	Sondex
S113	62° 125°	2.80	φ250	1527*448	1846*758	1.13	Sondex
S113G	62° 125°	2.80	φ250	1527*448	1846*758	1.13	Sondex
S81	50°126°	3.50	φ303	1080*480	1464*868	0.81	Sondex
S121	50°126°	3.50	φ303	1490*480	1874*868	1.21	Sondex
S188	50°126°	3.50	φ303	2120*480	2504*868	1.88	Sondex
Others	SFD13、S145、S201、S210、S251、SF123、SF160

Tranter
Model	Angle	Channel depth (mm)	Port OD (mm)	Port Distance (mm)	Size (mm)	Single plate Area（㎡）	Note
GX7	51.2° 129°	2.20	φ30	640*60	715*125	0.08	Tranter
GX12	85°115°	3.00	φ67	592*135	714*250	0.13	Tranter
GL13	58°120°	3.00	φ67	592*135	714*248	0.13	Tranter
GC16	60°118°	1.90	φ55	592*135	700*250	0.16	Tranter
GX18	85°115°	3.00	φ67	822*135	941*248	0.18	Tranter
GC26	66°114°	4.00	φ105	779*226.5	941*384	0.26	Tranter
GX26	85°115°	3.30	φ105	779*226.5	941*384	0.26	Tranter
GX42	85°115°	3.30	φ105	1189*226	1352*385	0.42	Tranter
GX51	85°115°	3.25	φ145	1143*300	1354*507	0.51	Tranter
GC51	60°118°	4.00	φ145	1143*300	1352*505	0.51	Tranter
GC60	63°115°	4.40	φ216	910*420	1196*700	0.60	Tranter
GX60	85°115°	3.50	φ194	910*420	1196*704	0.60	Tranter
GX100	85°115°	3.50	φ194	1490*420	1776*704	1.00	Tranter
GX140	85°115°	3.50	φ194	2070*420	2356*704	1.40	Tranter
GX64	85°115°	3.00	φ152	1320*285	1552*506	0.64	Tranter
GX91	85°115°	3.00	φ152	1800*285	2032*506	0.91	Tranter
GX118	85°115°	2.90	φ152	2280*285	2512*506	1.18	Tranter
GX85	85°115°	3.30	φ315	1140*570	1528*942	0.85	Tranter
GX145	85°115°	3.30	φ315	1720*570	2108*942	1.45	Tranter
GL85	85°115°	3.30	φ315	1140*570	1528*942	0.85	Tranter
GL145	85°115°	3.30	φ315	1720*570	2108*942	1.45	Tranter
GX205	85°115°	3.30	φ315	2300*570	2688*942	2.05	Tranter
GX265	85°115°	3.30	φ315	2880*570	3268*942	2.65	Tranter
GL230	大、小、竖	4.50	φ458	2090*700	2650*1250	2.60	OD 450/500
others	GL8、GL230、GL240、GL330、GL430

GEA / Kelvion
Model	Angle	Channel depth (mm)	Port OD (mm)	Port Distance (mm)	Size (mm)	Single plate Area（㎡）	Note
NT50T	129°127°	2.80	φ58	371*130	492*246	0.07	GEA
NT50M	129° 127°	2.80	φ56	743*130	864*246	0.18	GEA
NT50X	129° 127°	2.80	φ56	1115*130	1236*246	0.26	GEA
NT100T	横竖128°	3.00	φ110	707*262	897*445	0.25	GEA
NT100M	横竖128°	3.00	φ110	1113*262	1303*445	0.44	GEA
NT100X	横竖128°	3.00	φ110	1519*262	1709*445	0.63	GEA
NT150L	横竖120°	3.20	φ155	1572*314	1804*541	0.85	GEA
NT150S	横竖120°	3.20	φ155	1092*314	1324*541	0.48	GEA
NT250S	横竖124°	3.10	φ250	1406*420	1736*745	0.88	GEA
NT250M	横竖124°	3.10	φ250	1703*420	2033*745	1.13	GEA
NT250L	横竖124°	3.10	φ250	2000*420	2330*745	1.38	GEA
N40	180°	5.00	φ120	1227*257	1406*432	0.45	Wide gap Free flow
VT04	128°	2.55	φ32	480*61	550*129	0.04	GEA
VT10	53°127°	3.00	φ50	691*118	780*212	0.10	GEA
VT20	横竖127°	3.90	φ79	868*212	999*337	0.26	GEA
VT40	横竖118°	3.90	φ115	1227*257	1400*425	0.46	GEA
VT80(M)	横竖117°	3.20	φ175	1526*382	1766*614	0.84	GEA

Vicarb / Viex
Model	Angle	Channel depth (mm)	Port OD (mm)	Port Distance (mm)	Size (mm)	Single plate Area（㎡）	Note
V4	60°	3.00	φ30	430*62	500*125	0.04	Vicarb
V8	52°120°	3.00	φ49	554*100	640*188	0.08	Vicarb
V13	51°120°	3.50	φ70	625*130	739*241	0.13	Vicarb
V20	51°120°	3.50	φ70	875*130	989*241	0.20	Vicarb
V28	52°120°	4.00	φ100	882*234	1052*393	0.28	Vicarb
V45	52°120°	4.00	φ100	1302*234	1472*393	0.45	Vicarb
V60	52°120°	3.90	φ155	1280*310	1510*540	0.60	Vicarb
V100	52°120°	3.90	φ155	2000*310	2230*540	1.00	Vicarb

Theromwave
Model	Angle	Channel depth (mm)	Port OD (mm)	Port Distance (mm)	Size (mm)	Single plate Area (㎡）	Note
TL150S	54.7°	3.80	φ43	825*125	981*244	0.10	Theromwave
TL90S	54.7°	3.80	φ43	565*125	721*244	0.16	Theromwave
TL500S	127.5°60°	3.80	φ107	1256*256	1496*438	0.50	Theromwave
TL250S	127.5°60°	3.80	φ107	774*256	1014*438	0.28	Theromwave
TL650S	125.6°58.6°	4.00	φ206	1153*305	1495*586	0.57	Theromwave
TL850S	125.6°58.6°	4.00	φ206	1693*305	2035*586	0.91	Theromwave
